P55
iPlayecigs
$2.21~2.43/PC
| Quantity: | |
|---|---|

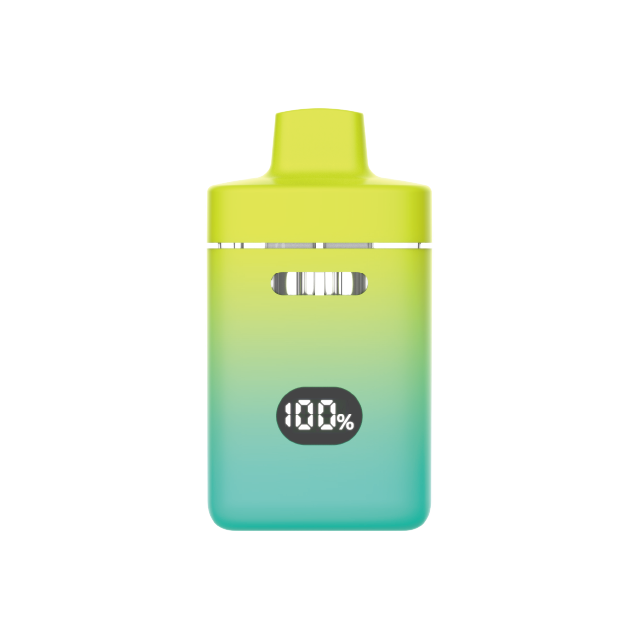

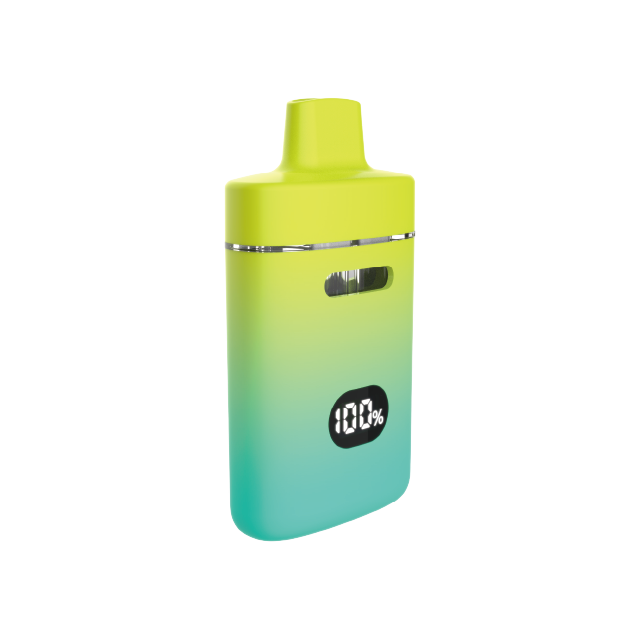

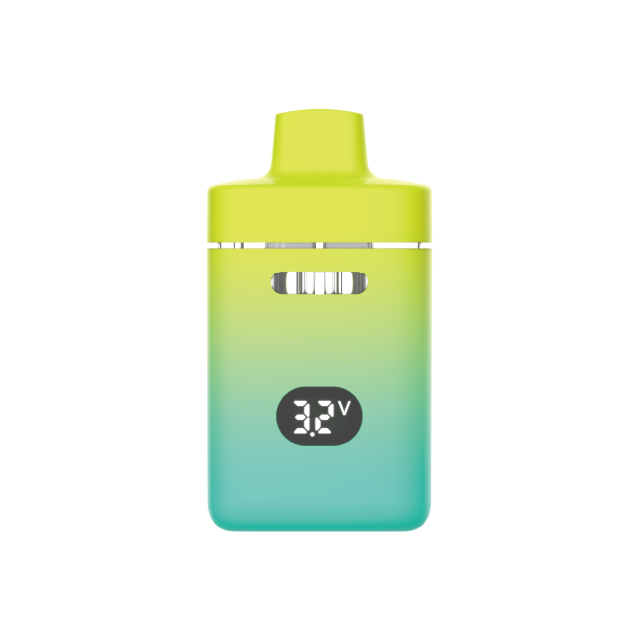

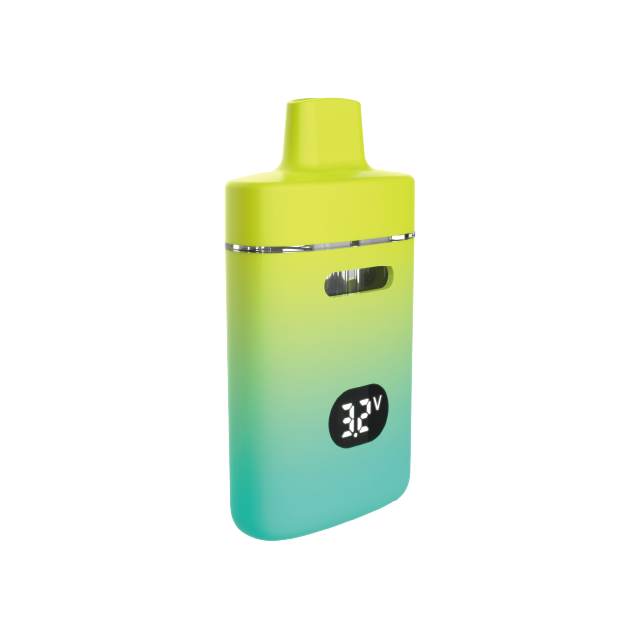

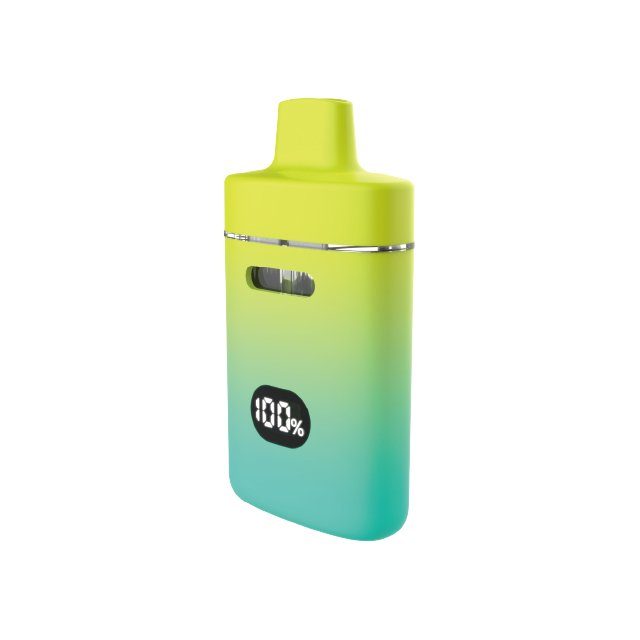

This is a sleek, palm-sized, with led screen display and dual-tank all in one 1g and 2g disposable vape pen;designed for both portability and performance. Its ergonomic shape fits comfortably in the hand, making it easy to use for extended sessions without strain. The device features two transparent side-mounted tanks, allowing users to monitor their oil levels at a glance—no more unexpected runouts.
Technical Parameters
Product Name: P55 Palm 1g 2g dual chamber empty dispoable vape pen
Center post: Stainless steel
Tank material: Medical Grade PCTG 1501
Heating element: Ceramic Coil
Activation: Button Inhale Activated
Mouthpiece: Press-on mouthpiece tip
Aperture: Ф 2.0 mm (*4) (Customizable)
Dimensions: 75.3mm*40.3mm*18.3mm
Max fill volume: 0.5mL*2/1.0 mL*2
Battery Capacity: 380mAh
Voltage: 3.7V (Customizable)
Resistance: 1.4ohm (Customizable)
Charge port: Bottom type-c
Color: Black (Customizable)
Here are some specific application scenarios of this all in one disposable vape:
• For distillate: This 2ml disposable applicable to a certain concentration of oil.
• For resion: This 1ml disposable applicable to this kind of oil.
• For rosin: This 1ml vape designed for this kind of oil.
Gear Shifting Of Disposable Vape :
A three-stage rocker switch. When it is moved to the corresponding position, the corresponding heating wire will operate. When moved to the A group, the heating wire of the A group will work.
When moving to the B group, the heating wire of the B group will work. When moved to the middle position, the heating wires of the A group and B group will work simultaneously.
Instruction for Oil Injection of Disposable Vape :
• Insert the blunt needle (14 ga. or smaller) into the space between the airway and the outer wall of the oil cup (Figure 1). When the atomizer is placed vertically, inject oil through the needle into the oil cup. Do not fill the oil reservoir beyond 95% of its capacity. The oil temperature should not exceed 125 degrees Fahrenheit (approximately 50 degrees Celsius) during injection.
Also, be careful not to inject the oil too quickly. Refer to the injection speed (14mm/S), which will allow the air in the oil reservoir to escape and prevent the formation of bubbles.
• After injecting the oil, install the silicone and the mouthpiece within 90 seconds (Figure 2).
• After installing the mouthpiece, please place the product upside down for 1-2 hours to allow the oil temperature to drop to room temperature (otherwise, there will be risks such as oil leakage). (Figure 3)
• After the oil temperature has dropped to room temperature, proceed to the next packaging step.
• Please follow the above procedures strictly. After completion, if storage is required, store the product upside down until ready for retail.
• Before use, the atomizer should be left to stand upright for at least 30 minutes. Allow the oil to slowly penetrate the atomizing core until it is saturated to avoid dry burning.
(Note: The rate at which the atomizing core becomes saturated depends on the viscosity of the liquid. More viscous fluids may require more time.)
• For un-injected products, try to use them within half a year to avoid uncontrollable factors.
