Views: 0 Author: Site Editor Publish Time: 2026-04-21 Origin: Site
Selecting the right vape hardware(such as 510 cartridges, 510 battery, 1ml disposable vape pen,2g disposable vape device,AIO disposable,empty vape pen) begins with a deep understanding of your specific cannabis extract. Many common user frustrations—such as clogging, leaking, dry hits, flavor degradation, or diminished vapor production—are often caused not by the extract itself, but by a fundamental mismatch between the hardware and the extract's physical and chemical properties. After investing significant time and resources into carefully cultivating, extracting, and formulating the ideal cannabinoid and terpene profile, using incompatible hardware can quickly erode the overall user experience and lead to preventable performance failures.
For brands, extractors, and even discerning end-users, choosing the correct hardware for a specific type of extract—particularly THC/CBD oil, Live Resin, and Live Rosin—is a critical decision. These three extract types differ significantly in viscosity, chemical composition, heat sensitivity, and residue characteristics, and therefore demand distinctly different hardware solutions. This article will dive into the key properties of these three major extracts and explain how to match them with the right vape hardware. Let's dig in!
When pairing a specific cannabis extract with appropriate vape hardware, several core factors must be considered. Extract viscosity directly affects wicking efficiency and clogging risk. Heat sensitivity determines the extract's tolerance to different heating curves: terpene-rich extracts like Live Resin degrade rapidly at high temperatures, while highly viscous extracts like Live Rosin require sufficient heat to flow and vaporize properly. Additionally, residue characteristics are critical: certain unrefined extracts contain significant amounts of lipids, waxes, or plant matter that accelerate coil fouling or cause premature hardware failure. Below, we detail the specific properties and optimal hardware matches for CBD oil, Live Resin, and Live Rosin.
Properties & Challenges:

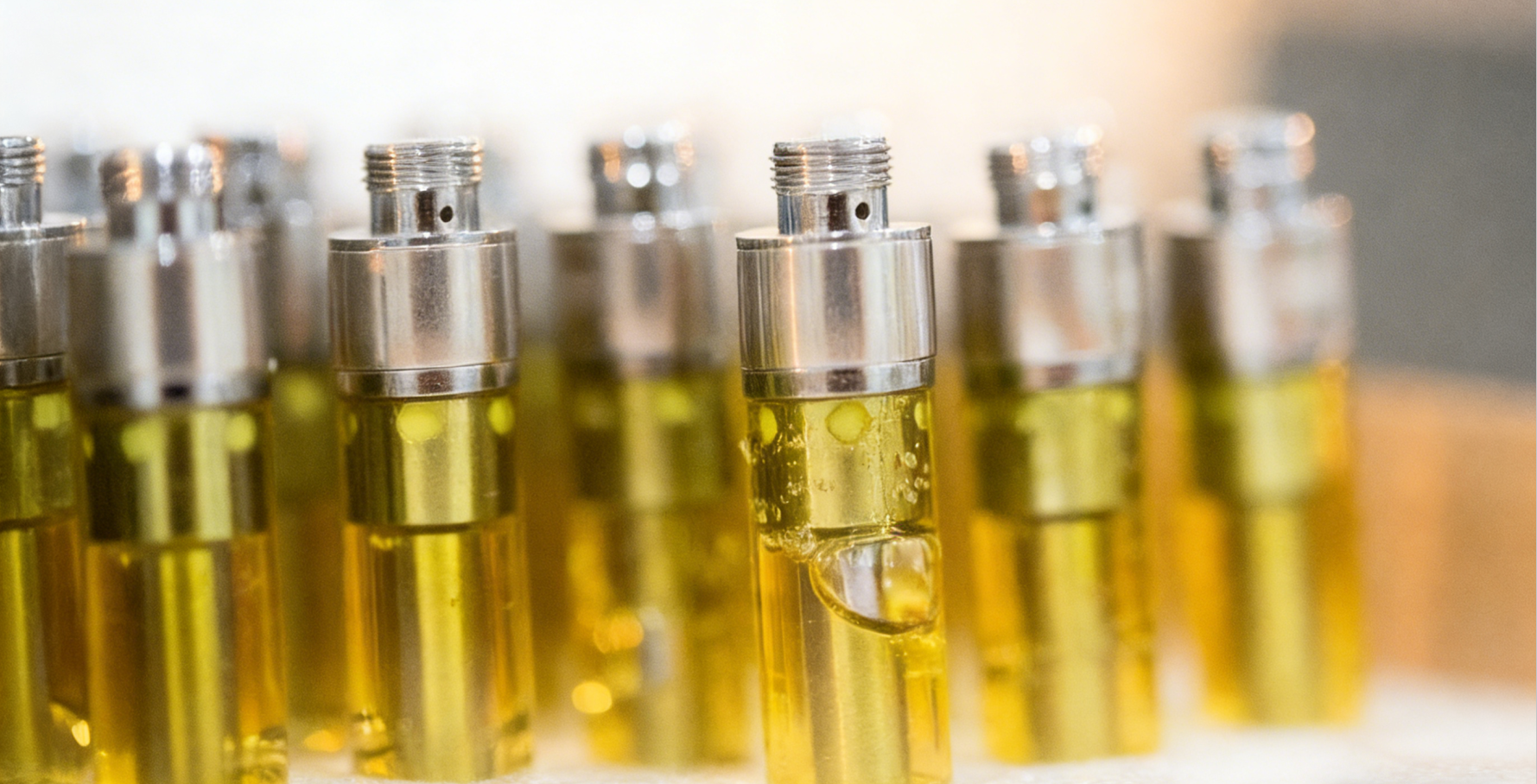

Distillate oil—particularly high-purity CBD/THC distillate—has a unique physical characteristic: a strong tendency to crystallize. When CBD/THC concentration is high (typically ≥60%) without sufficient diluents, CBD molecules will spontaneously form crystals at room temperature, causing the oil to transition from liquid to solid or semi-solid state. This leads to complete clogging of intake holes, wicking failure, and dry heating of the coil. Furthermore, CBD has a relatively narrow thermal tolerance window; overheating degrades its active compounds and produces unpleasant flavors.
Core Material: Ceramic coils are the absolute first choice. The porous ceramic structure provides an exceptionally even heating surface, gently vaporizing CBD while minimizing localized overheating.
Essential Feature: A preheat function is indispensable. Running at low voltage (e.g., 1.8V–2.5V) for 1–2 seconds gently liquefies crystallized CBD oil, restoring flowability before normal vaporization.
Intake Hole Design: Requires larger intake holes—typically 1.5mm–2.0mm in diameter—to allow partially crystallized or highly viscous CBD oil to flow smoothly into the heating chamber.
Avoid: Standard small-bore, high-resistance cotton-wick cartridges. The fibrous structure of cotton is easily clogged by crystallized CBD and cannot provide the uniform low-heat delivery required.
Properties & Challenges:
The core value of Live Resin lies in its exceptionally rich yet fragile terpene profile. It is extracted from fresh, frozen whole-plant cannabis that has not been dried or cured, thus preserving the full spectrum of mono- and sesquiterpenes present in the living plant. However, these terpenes are highly heat-sensitive and volatile. Excessively high temperatures (e.g., above 3.6V) will instantly scorch the delicate floral, fruity, and herbal notes, leaving a burnt or muted flavor. Additionally, Live Resin has variable viscosity (typically low to medium), requiring a wicking system that is neither too fast (leading to leaks) nor too slow (leading to dry hits).
Device Type: Full-ceramic all-in-one (AIO) devices are widely recognized as the industry's best choice. Ceramic's low thermal inertia and gentle heating curve provide smooth, stable heat transfer.
·
Structural Design: Postless hardware designs offer significant advantages. Eliminating the metal center post removes a key site where extract can accumulate and carbonize, while also reducing dead zones in the airflow path, ensuring each puff is pure and free of off-notes.
Voltage/Power: Must be paired with low voltage (2.4V–3.0V) and a slow, stable heating curve. Batteries with precise voltage control or power-ramping functionality are highly recommended.
Avoid: High-power, fast-heating sub-ohm devices. The instant high heat they generate will completely destroy the flavor integrity of Live Resin.
Properties & Challenges:
Live Rosin is one of the purest and most sought-after solventless extracts available. Like Live Resin, it uses fresh-frozen plant material, but is extracted using only heat and pressure (after water or dry-sieving), without any hydrocarbon solvents. The result is an extract that contains a high concentration of natural lipids, waxes, plant pigments, and triglycerides. While these compounds have biological value, they are a "nightmare" for vape hardware. When heated, they leave behind a sticky, stubborn, dark residue on the ceramic coil surface and within the airflow channels, leading to rapid clogging, restricted airflow, and flavor degradation.
Core Material: Again, high-density porous ceramic coils are the first choice. However, the critical distinction is that the ceramic's pore size must be optimized for Live Rosin—typically requiring a slightly larger microporous structure to allow the high-viscosity oil to pass through while partially filtering out oversized lipid particles.
Structural Design: Postless ceramic hardware is the most dependable option. By completely eliminating the center post, you remove a primary cause of clogging where extract accumulates at the joint between the post and the ceramic coil. All-glass or glass-ceramic hybrid tanks also help reduce residue adhesion.
Additional Recommendations: Consider hardware with a reverse airflow path, which allows vapor to travel through a longer, condensable path before reaching the user's mouth, thereby reducing the amount of large-molecule lipids entering the respiratory tract. Also, regular cleaning of the airflow channel is essential for maintaining Live Rosin device performance.
Avoid: Any device with a metal center post, small-bore intake holes, or standard cotton wicks. These designs will fail almost immediately when used with Live Rosin.
Extract Type | Core Challenge | Optimal Hardware Features | Designs to Avoid |
CBD Oil | Crystallization, thermal degradation | Ceramic coil, preheat function, large intake holes | Small-bore cotton wick, no preheat function |
Live Resin | Terpene heat sensitivity, fragile flavor | Full-ceramic device, low voltage, postless design | High-power sub-ohm, rapid heating |
Live Rosin | High lipid residue, clogging tendency | Postless ceramic coil, optimized pore size, easy-clean design | Metal center post, standard cotton wick, small intake holes |
Summary
Choosing the right balance between your extract and your hardware can make a meaningful difference in user experience, and you don't have to figure it out alone. Every extract—whether it's crystallization-prone CBD, terpene-rich Live Resin, or lipid-heavy Live Rosin—has its own unique physical and chemical nuances. Even small adjustments in hardware selection, such as opting for a postless design, integrating a preheat function, or optimizing ceramic pore size, can translate directly into purer flavor, more reliable performance, and longer product lifespan.
Because even within the same extract category (for example, Live Rosin from different sources), viscosity, lipid content, and crystallization tendency can vary significantly, we strongly recommend conducting test runs with your specific extract. Testing will help confirm optimal performance parameters, preserve flavor integrity, and reduce the risk of failures before scaling to full production or market launch.
If you would like to discuss your specific CBD oil, Live Resin, or Live Rosin formulation, clarify performance goals, or explore available hardware options, please reach out to one of our knowledgeable representatives. We are always happy to share technical insights and practical recommendations to help you move forward with confidence.
Disclaimer : The information in this article is provided for educational and informational purposes only. Cannabis extract formulations (including cannabinoid concentration, terpene profile, lipid content, and additives) can vary significantly, and hardware performance cannot be guaranteed based solely on extract category. We strongly recommend that all extractors, brands, and hardware integrators conduct thorough compatibility testing—including small-batch trial runs—with their specific extract and chosen hardware to verify real-world performance before full-scale production.
