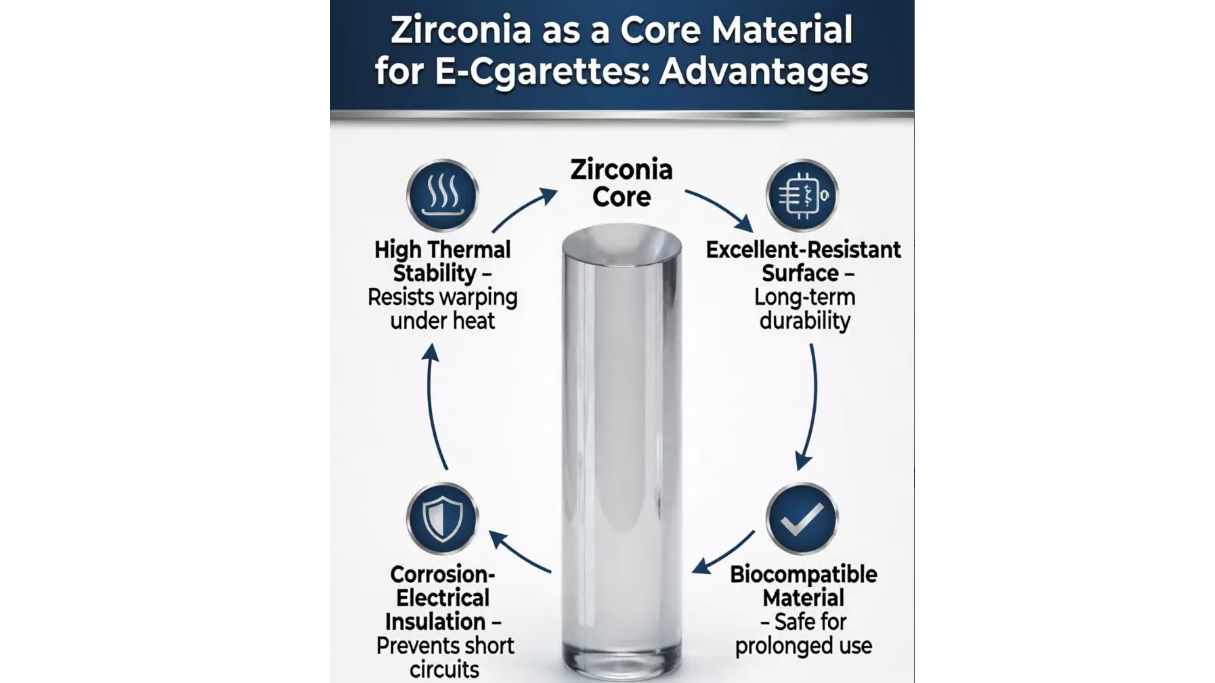

With the rapid development of the electronic cigarette industry, material innovation has become a key factor in improving product performance, safety, and user experience. Among various advanced ceramic materials, zirconia (zirconium dioxide, ZrO₂) has emerged as a promising candidate for use in critical components such as the center post of electronic cigarettes devices. This paper explores the advantages of zirconia as a center rod material, focusing on its thermal stability, mechanical strength, chemical inertness, biocompatibility, and electrical insulation properties. The analysis demonstrates that zirconia outperforms traditional materials such as Stainless Steel and Aluminum in several key aspects, making it an ideal choice for next-generation electronic cigarette design.
Electronic cigarettes, or e-cigarettes, function by heating a liquid (e-liquid or Cannabis oil) to produce an aerosol that the user inhales. The center post, a core structural and functional component, plays a vital role in supporting the heating coil, ensuring proper heat distribution, and maintaining structural integrity under repeated thermal cycles. Traditional materials used in center post include stainless steel, alumina (Al₂O₃), and other ceramics. However, these materials have limitations in terms of thermal shock resistance, long-term durability, and potential for metallic ion leaching. Zirconia, a high-performance ceramic, offers a compelling alternative due to its unique combination of physical and chemical properties.
One of the most critical requirements for a center post material is the ability to withstand rapid and repeated temperature changes without cracking or degrading. Zirconia exhibits excellent thermal stability, with a melting point exceeding 2,700°C and low thermal conductivity. This low thermal conductivity helps localize heat around the coil, improving heating efficiency and reducing energy loss. More importantly, zirconia possesses exceptional thermal shock resistance due to its phase transformation toughening mechanism. When subjected to thermal stress, the material undergoes a martensitic phase transformation from tetragonal to monoclinic structure, which absorbs energy and inhibits crack propagation. This property is particularly advantageous in e-cigarettes, where the center post experiences frequent heating and cooling cycles during use.
Compared to other ceramic materials like alumina, zirconia has superior mechanical strength and fracture toughness. The addition of stabilizing oxides such as yttria (Y₂O₃) produces yttria-stabilized zirconia (YSZ), which maintains its structural integrity under mechanical stress. This high toughness reduces the risk of breakage during manufacturing, assembly, or daily use, enhancing the product’s reliability and lifespan. In contrast, alumina, while hard, is more brittle and prone to chipping or cracking under impact. The robustness of zirconia ensures consistent performance and reduces the likelihood of device failure.
The center post comes into close proximity with the e-liquid and the generated aerosol. Therefore, chemical stability is paramount to prevent contamination. Zirconia is highly inert and resistant to corrosion by organic solvents, acids, and bases commonly found in e-liquids (e.g., propylene glycol and vegetable glycerin). It does not leach metal ions or react with flavor compounds, preserving the purity and taste of the vapor. This inertness also contributes to longer device life, as the material does not degrade over time when exposed to aggressive chemical environments.
Safety is a major concern in inhalable devices. Zirconia is widely used in biomedical applications, such as dental implants and prosthetics, due to its excellent biocompatibility. It is non-toxic, non-allergenic, and does not provoke adverse immune responses. When used in e-cigarettes, zirconia minimizes health risks associated with material degradation or leaching, providing users with a safer vaping experience. This is especially important as regulatory bodies increasingly scrutinize the materials used in consumer inhalation products.
The center post must act as an effective electrical insulator to prevent short circuits and ensure the safe operation of the heating coil. Zirconia has high electrical resistivity, even at elevated temperatures, making it an ideal insulating material. This property enhances the safety and reliability of the e-cigarette by minimizing the risk of electrical faults.
Compared to stainless steel, zirconia eliminates the risk of metal ion leaching and corrosion. Unlike alumina, it offers superior toughness and thermal shock resistance. While zirconia may have a higher initial cost, its durability and performance justify the investment, especially in premium e-cigarette products.
Finally Zirconia (ZrO₂) presents a superior alternative to conventional materials for electronic cigarette center post. Its combination of thermal stability, mechanical toughness, chemical inertness, biocompatibility, and electrical insulation makes it ideally suited for this application. As the e-cigarette industry moves toward higher safety standards and improved user experiences, the adoption of advanced materials like zirconia will play a pivotal role. Future research should focus on optimizing manufacturing processes and exploring nanostructured or composite zirconia formulations to further enhance performance.
